Automatic Cardboard Production Line Conveyor Systems
brand :Newkuani
Origine des produits :China
Le délai de livraison :20days
La capacité dapprovisionnement :100sets/month
Type of roller: 20pieces/m, gap 50mm;
Support: 3mm steel plate forming, surface electrostatic spraying RAL1013;
Roller: Φ45*1.5mm thickness precision bright roller, surface galvanized;
Bearing: Precision bearing 6001 punching;
Axis: Φ12mm cold drawing circle, surface treatment;
Support leg: 3mm steel plate forming, surface electrostatic spraying RAL1013;
Mid-plate: 3mm steel plate forming, surface electrostatic spraying RAL1013;
Feet cup: M16 high strength bolt, adjustable±50mm;
Cardboard mill conveyor system video：
Free Roller Conveyor：KW1200
1) Main parameter:
l Type of roller: 20pieces/m, gap 50mm;
l Support: 3mm steel plate forming, surface electrostatic spraying RAL1013;
l Roller: Φ45*1.5mm thickness precision bright roller, surface galvanized;
l Bearing: Precision bearing 6001 punching;
l Axis: Φ12mm cold drawing circle, surface treatment;
l Support leg: 3mm steel plate forming, surface electrostatic spraying RAL1013;
l Mid-plate: 3mm steel plate forming, surface electrostatic spraying RAL1013;
l Feet cup: M16 high strength bolt, adjustable±50mm;
2) Function: Used for cardboard storage and transfer.

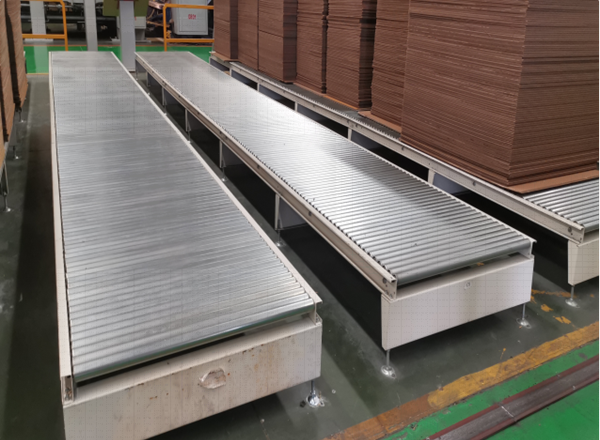

3) Outline picture
