Carton Factory Conveyor System Design
brand :Newkuani
Origine des produits :Jiangsu,China
Le délai de livraison :20days
La capacité dapprovisionnement :100sets/month
Paperboard Lifter with Module Plastic Belt Conveyor：
1) Main parameter
l Dimension： 3000mmL*2700mmW*mmH customized;
l Structure:Gantry framework,gantry crane basket drive, plastic belt conveyor ,safety protective gate, etc.
l Gantry framework:the whole frame is welded by national standard steel profile,the surface electrostatic painting treatment RAL5008. Safety net on sides; with super long material detection at the front and rear parts .
l Gantry crane basket drive: crane lifter drive by gearbox and chain drive; and the crane basket frame is welded by national standard steel profile, the surface electrostatic painting treatment TAL1023.
l Safety protective gate:quick safety gate structure, when paper roll enters the lifter, the safety gate will close.
l Power:chain conveyor power:2.2kw;Lifting power: 18.5kw, motor brand：BONENG;
l Max capacity for lifting:4.5T,plastic belt conveyor speed:max30m/min, lifting speed:max30m/min, frequency control by inverter.
l Width of paper roll:600mm-2850mm, lift one paper roll each time, paper roll diameter:φ350mm-1500mm;
2) Function：Lift cardboard stack to specified height.

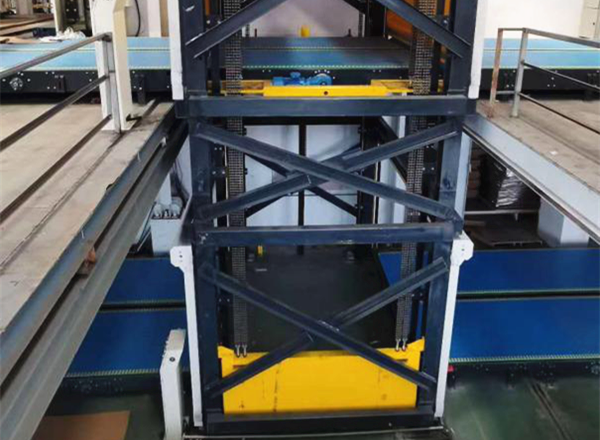

3) Outline Example:
