Conveyor System For Corrugated Paper Industry
brand :Newkuani
Origine des produits :China
Le délai de livraison :20days
La capacité dapprovisionnement :100sets/month
The Newkuani stacking conveyor is equipped with a high-quality hydraulic lifting drive. The maximum load cardboard weight is 2.5T. It is suitable for the cardboard output speed of the corrugator. The paper stacking is stable and efficient.
Corrugated paper industry intelligent cardboard conveying system video：
Dual Side Dehumidifier：
1) Main parameter
l Outline size：3500mmW*6000mmL*3000mmH;
l Power：15 Kw ,Each small fan 0.5Kw, AC380V;
Each side: 3 pieces in one row ,total 5rows,7.5Kw;
l Constitute： Made by 5 rows of special fans,3 pieces in 1 row; two rounds on the top.
2) Function：Dehumidifier, convenient to set shape. Note: the outlet tube will be provided by customer.
3) Working type：Using the independent control mode, when the magic eyes detect the cardboard, fans will start automatically, then stop after the set time up.

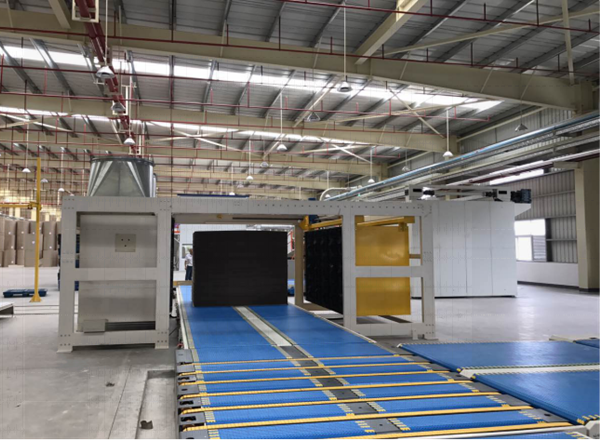

4) Outline picture：
