Corrugated Cardboard Conveyor System Upgrade
brand :Newkuani
Origine des produits :China
Le délai de livraison :20days
La capacité dapprovisionnement :100sets/month
Main parameter of Track：
l One rail: Inter fixed type adopt 12kg/m track and 4# angle iron units.
l Two rails: Two plate tracks adopts the channel steel and wear-resistant plate, which can reduce the car body vibration and make the car running smoothly and safety.
l Center distance between two slab tracks is 1800mm
Intelligent and efficient cardboard conveying system video：

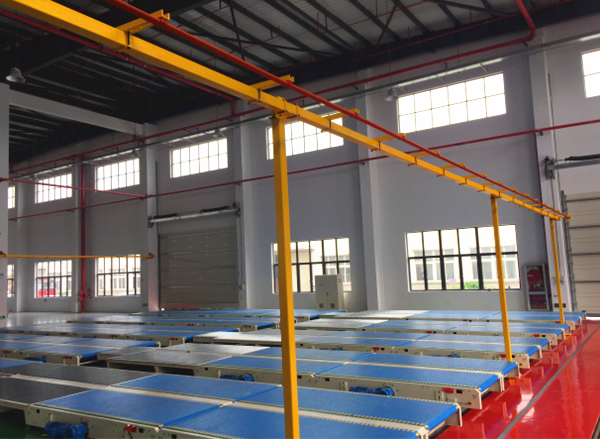

Track〠Electric Contact Line and Accessories：
1) Main parameter of Track：
l One rail: Inter fixed type adopt 12kg/m track and 4# angle iron units.
l Two rails: Two plate tracks adopts the channel steel and wear-resistant plate, which can reduce the car body vibration and make the car running smoothly and safety.
l Center distance between two slab tracks is 1800mm
2) Main parameters of Electric contact line：
l The whole electric contact line adopts Taiwan no juncture sliding contact line.
l Brush collector adopts wear-resisting carbon brush. Specification：3P/50A
l Power : AC380V 60Hz
1) Main parameter of accessories
l The columns adopt 80*80 square tube electrostatic powder painting RLA1023
l The beams adopt 80*80 square tube electrostatic powder painting RLA1023
l The overall height can be adjusted up and down, to make sure the whole in a straight line.
